SSMA Female Connector 2-Hole Flange

SSMA Female Connector 2-Hole Flange – Precision RF Interconnect for High-Density Applications

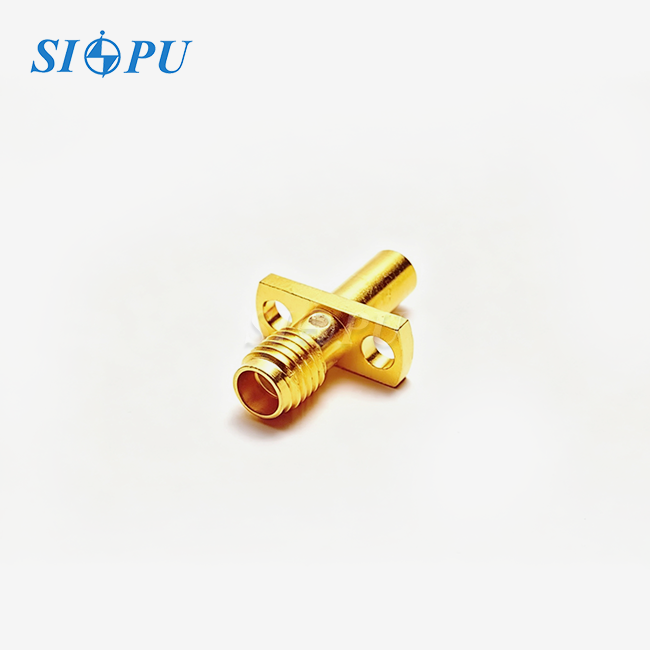

SIPU RF Technology is proud to announce the SSMA Female Connector 2-Hole Flange (Model: SIPU-SSMA-KFB2), a micro-miniature RF coaxial solution for demanding high frequency applications. This connection is designed for operation from DC to 30 GHz with a characteristic impedance of 50Ω and has remarkable electrical performance with an insertion loss of ≤0.05√F(GHz)dB and VSWR of ≤1.05+0.012F(GHz). Fully compatible with RG405/U coaxial cable. Designed for aerospace, defence and precision test equipment, the 2-hole flange mount arrangement offers better mechanical stability and vibration resistance.

The product is constructed with gold-plated brass outer conductors and beryllium bronze core contacts, providing consistent signal integrity for over 500 mating cycles. The small footprint meets important space restrictions in current RF modules and provides strong environmental performance from -65℃ to +125℃.

What Makes SSMA Female Connectors Unique?

The SSMA series is around 70% of the normal SMA size, alleviating crucial space problems in high density RF applications. This micro-miniature interface offers outstanding electrical performance and more connections per panel space.

The 2-hole flange mount design has obvious benefits over threaded-only mounting. It distributes mechanical stress equally across the mounting surface, lowering the likelihood of signal leakage in temperature cycling or vibration environments. The large flange contact area provides a low impedance ground route, which greatly improves EMI shielding effectiveness.

Your system has the advantages of accurate port alignment and solid mechanical connection. The flange also acts as a rotating stop during mating cycles to ensure the RF performance for the life of the connection.

SSMA Female Connector 2-Hole Flange Specifications

Key Application Areas

Your high-frequency systems demand connectors that perform reliably under extreme conditions. The SSMA Female Connector 2-Hole Flange excels in three primary sectors:

Aerospace and Satellite Communications – Deployed in transponder modules and phased-array antennas where weight reduction is vital. The connector withstands vacuum conditions and severe launch vibrations while maintaining signal fidelity.

Advanced Radar Systems – The compact footprint enables ultra-high-density mounting in Active Electronically Scanned Arrays (AESA). You can install more transmit/receive modules per square meter without compromising performance.

High-Speed Digital Testing – Frequently integrated into hermetic packages and thin-film hybrid circuits. The 2-hole flange provides stable ground paths and precise port alignment for repeated high-frequency measurements in laboratory environments.

The connector maintains exceptional signal integrity even in the presence of electromagnetic interference, making it suitable for mission-critical applications.

Manufacturing Excellence and Quality Control

SIPU RF Technology implements rigorous quality verification throughout production. Each batch undergoes comprehensive electrical testing using insulation withstanding voltage testers to verify dielectric withstanding voltage and insulation resistance performance.

Plating quality receives particular attention. Every batch undergoes plating thickness measurement and adhesion testing to ensure long-term reliability. All products comply with RoHS environmental standards, verified through batch-level testing protocols.Verified comprehensively over numerous batches, this product delivers outstanding and consistent electrical performance.

With over 25 years of RF manufacturing experience, SIPU maintains military-grade production lines and follows MIl, GJB, and IEC standards. This heritage ensures your connectors deliver consistent performance across high-volume deployments.

Design Features That Solve Real Challenges

High-Precision Interface – The SSMA design supports higher-frequency applications with lower loss compared to larger connector families. Your system benefits from reduced signal degradation across the entire operational bandwidth.

Secure Flange Mounting – The 2-hole configuration provides reliable installation for panel mounting applications. Screws distribute mechanical load evenly, preventing stress concentration that could compromise RF performance.

Compact Profile – Space constraints in modern RF modules demand efficient use of every square millimeter. This connector's reduced footprint enables high-density layouts without sacrificing electrical performance.

Temperature Resilience – Operating reliably from -65℃ to +125℃, the connector accommodates extreme environmental conditions found in aerospace and industrial applications.

Frequently Asked Questions

Q:What advantages does this connector offer over standard SMA?

A:The SSMA is approximately 30% smaller, allowing much higher packing density in limited spaces while supporting frequencies up to 30 GHz. Your designs gain more flexibility in compact assemblies.

Q:How does the 2-hole flange affect grounding performance?

A:The flange provides a broad, flat contact area against your panel, ensuring a low-impedance ground path. This delivers superior EMI shielding compared to threaded-only connectors.

Q:What are the mating cycle expectations?

A:This connector is rated for 500 mating cycles under normal operating conditions. Proper handling and torque application help achieve maximum lifecycle performance.

Q:Can I use this connector in high-vibration environments?

A:Yes. The 2-hole flange mounting provides excellent vibration resistance by distributing mechanical stress across multiple attachment points. This makes it suitable for aerospace and defense applications.

Q:What materials ensure long-term reliability?

A:Gold-plated brass outer conductors and beryllium bronze center contacts provide excellent conductivity and corrosion resistance. PTFE dielectric material maintains stable electrical properties across the temperature range.

Partner With SIPU RF Technology

Contact our SSMA Female Connector 2-Hole Flange's team at info@sipuconn.com to discuss your specific needs and request samples today.
