SMA Female to MCX Female Adapter

SMA Female to MCX Female Adapter

SIPU RF Technology Co., Ltd. supplies the SMA Female to MCX Female Adapter (Model: SIPU-SMA/MCX-KK). Features: 1. Precision RF / microwave coaxial connection for professional application. This adapter has been produced for the last 25 years with outstanding signal integrity across a broad frequency range from DC to 6 GHz with ultra-low insertion loss of ≤0.06√F(GHz)dB and good VSWR of ≤1.3.

This adapter is manufactured to military requirements with gold plated brass outer conductors and beryllium bronze core contacts with PTFE dielectric insulation. It has a characteristic impedance of 50Ω and can work in temperature from -65℃ to +125℃. The product is designed for durability with 500 mating cycles and insulation resistance of > 5,000MΩ for reliable performance in telecommunications, test equipment and industrial electronics applications.

SMA Female to MCX Female Adapter Specifications

Key Features and Advantages

Precision Interface Design

The straight configuration provides seamless interconnection between SMA and MCX interface standards. You get reliable signal transition without mechanical complexity or unnecessary insertion loss.

This design accommodates both threaded SMA connections and snap-on MCX interfaces. Your equipment benefits from flexible installation options in various RF system architectures.

Superior Contact Performance

Gold-plated contact surfaces deliver outstanding conductivity and long-term reliability. The beryllium bronze center conductor maintains consistent contact pressure throughout the adapter's operational life.

You experience stable signal transmission with minimal contact resistance. The outer contact achieves ≤2.5mΩ resistance while the center contact maintains ≤5.0mΩ, ensuring excellent electrical performance.

Robust Construction Quality

In our production process we use precise CNC machining and thorough quality verification. Every lot is tested for plating thickness, coating adherence and RoHS environmental compliance.

Premium gold coating and brass body for corrosion resistance in harsh conditions. The PTFE dielectric material provides stable performance from -65℃ to +125℃ throughout the whole temperature range.

Space-Efficient Design

The compact adapter profile suits high-density RF installations where space comes at a premium. You can implement this SMA Female to MCX Female Adapter in miniaturized communication systems and crowded equipment racks.

This space-saving design maintains full electrical performance without sacrificing signal quality. Your system gains interface flexibility without requiring extensive reconfiguration or custom cable assemblies.

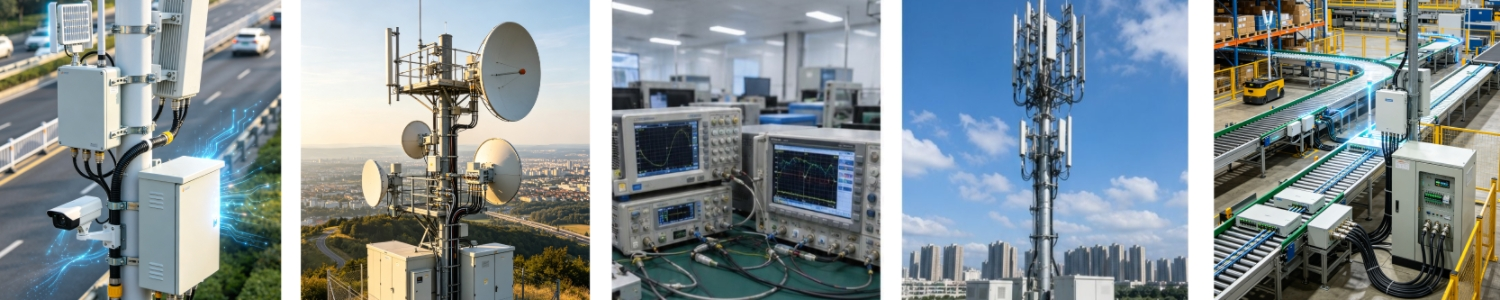

Applications Across Industries

Telecommunications and 5G Infrastructure

This adapter serves as a critical component in modern wireless communication systems. You can connect miniaturized PCB-level modules to standard antenna systems with confidence.

The adapter enables rapid deployment in 5G base stations and distributed antenna systems. Your infrastructure benefits from reliable signal routing between different connector standards.

Test and Measurement Equipment

RF testing laboratories rely on this adapter for connecting compact devices under test to standard measurement instruments. You achieve accurate signal analysis without compromising measurement integrity.

Vector Network Analyzers and spectrum analyzers interface seamlessly with MCX-equipped devices. Your test setup gains versatility without introducing measurement uncertainty.

Industrial Electronics and IoT

Industrial automation systems increasingly incorporate miniaturized wireless modules with MCX interfaces. This adapter bridges the gap between these compact modules and external SMA-based antenna systems.

Smart city deployments and industrial IoT networks benefit from this standardized interface solution. You maintain signal quality while achieving the connectivity flexibility your project demands.

GPS/GNSS and Navigation Systems

Automotive and aerospace applications require precise signal routing from miniaturized GNSS receivers to external antenna systems. The SMA Female to MCX Female Adapter provides the necessary interface conversion.

You connect compact navigation modules to standard antenna feeds without signal degradation. Your positioning systems maintain accuracy through reliable RF signal transmission.

Quality Assurance and Manufacturing Excellence

Military-Grade Production Standards

SIPU RF Technology manufactures adapters according to MIL, GJB, and IEC standards. Our production lines maintain dual-use capability for both commercial and military applications.

You receive components manufactured with the same precision demanded by defense and aerospace industries. Every adapter undergoes rigorous inspection before shipment.

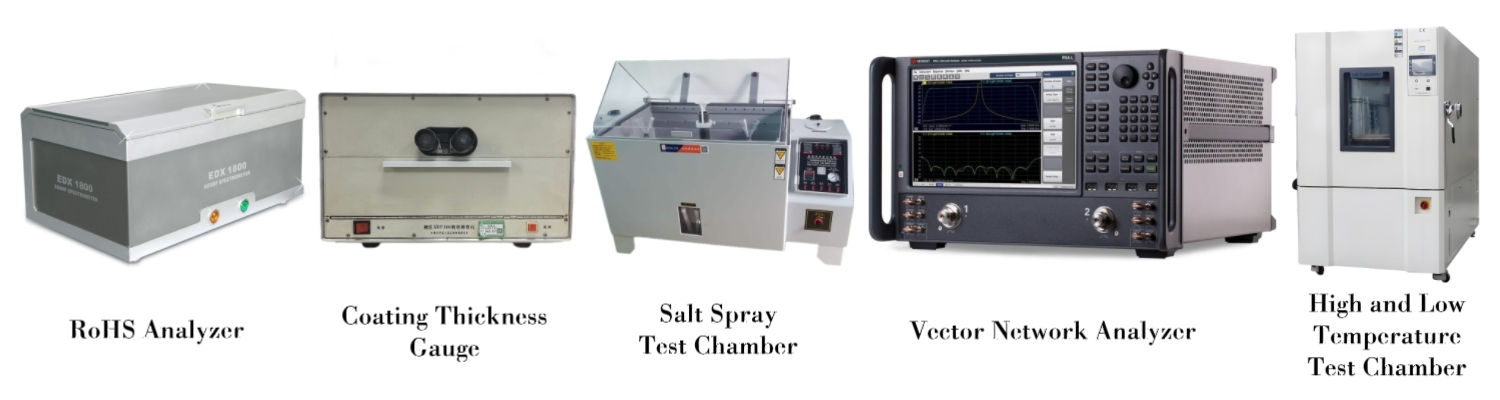

Comprehensive Testing Protocol

Each production batch receives dielectric withstanding voltage testing using specialized insulation testers. We verify 750V dielectric strength and insulation resistance exceeding 5,000MΩ.

Our quality control process includes plating thickness measurement and coating adhesion testing. You can trust that every adapter meets documented specifications and environmental compliance requirements.

ISO 9001 Certified Processes

Our quality management system maintains ISO 9001 certification with continuous improvement initiatives. CE and RoHS compliance ensures your products meet international regulatory standards.

You benefit from consistent manufacturing quality backed by documented processes. Our certification demonstrates commitment to reliable product delivery and customer satisfaction.

Packaging and Delivery

SIPU packages each adapter with protective materials to prevent damage during shipping. Standard products ship within 72 hours of order confirmation.

You receive adapters ready for immediate integration into your RF systems. Our logistics partners ensure safe delivery to your location worldwide.

Frequently Asked Questions

Q: What frequency range does this adapter support?

A: The SIPU-SMA/MCX-KK adapter operates across DC to 6 GHz with excellent signal integrity and low insertion loss throughout the entire frequency range.

Q: How many mating cycles can this adapter withstand?

A: This adapter is rated for 500 mating cycles, providing reliable performance through repeated connections and disconnections in your RF system.

Q: Can this adapter handle extreme temperatures?

A: Yes, the operating temperature range spans -65℃ to +125℃, making it suitable for harsh environmental conditions in aerospace, defense, and industrial applications.

Q: Is this adapter suitable for 75-ohm systems?

A: No, this adapter is specifically designed for 50-ohm systems. Using it in 75-ohm applications will cause impedance mismatch and signal reflection issues.

Q: What materials are used in construction?

A: The adapter features brass outer conductors with gold plating, beryllium bronze center conductors with gold plating, and PTFE dielectric material for superior performance and durability.

Q: Does SIPU provide technical support for adapter selection?

A: Yes, our engineering team offers product selection assistance, application consultation, and technical support to ensure you choose the optimal solution for your specific requirements.
