SMA Female to SSMA Female Adapter

SMA Female to SSMA Female Adapter – Precision RF Interface Solution

SIPU RF Technology presents the SMA Female to SSMA Female Adapter (Model: SIPU-SMA/SSMA-KK), an enterprise-grade inter-series RF coaxial component engineered for demanding high-frequency applications. This precision adapter features a 50Ω characteristic impedance with a broad frequency range from DC to 18GHz, delivering exceptional electrical performance with insertion loss of ≤0.05√F(GHz)dB and VSWR of ≤1.05+0.012F(GHz). Built with gold-plated brass outer conductor and beryllium bronze center contact, the adapter ensures superior conductivity with contact resistance as low as ≤6.0mΩ (center) and ≤2.5mΩ (outer). Rated for 500 mating cycles and operational across -65℃ to +125℃, this product provides reliable conversion between standard SMA and miniaturized SSMA interfaces for aerospace, defense, and test environments.

Product Overview

The adapter bridges the critical gap between full-size SMA systems and compact SSMA modules. Its straight orientation design facilitates seamless integration in high-density RF assemblies.

Engineers rely on this component when legacy test equipment with SMA connections must interface with modern miniaturized hardware. The robust construction ensures consistent signal integrity across demanding operational conditions.

Quality manufacturing processes guarantee repeatable performance. Each unit undergoes stringent electrical testing including dielectric withstanding voltage verification at 750V and insulation resistance confirmation exceeding 5,000MΩ.

SMA Female to SSMA Female Adapter Specifications

Key Advantages

Superior Interface Conversion

The female-to-female configuration enables direct connection between SMA and SSMA systems without additional cabling. This eliminates unnecessary signal path complexity.

Gold plating on all contact surfaces minimizes oxidation. You benefit from stable long-term performance even in challenging environmental conditions.

Precision Engineering

PTFE dielectric material maintains excellent electrical properties across the full operating temperature range. The design ensures minimal signal reflection and loss.

Beryllium bronze center contacts provide exceptional spring characteristics. This guarantees reliable electrical contact throughout the adapter's 500-cycle lifespan.

Compact Design Benefits

The straight orientation and reduced SSMA footprint make this adapter ideal for space-constrained applications. You can achieve higher component density in your RF modules.

Lightweight construction reduces overall system weight. This proves particularly valuable in aerospace and portable test equipment applications.

Robust Quality Control

All production batches receive batch-wise dimensional inspection. Full 100% measurement is implemented on critical dimensions to ensure accuracy. Every batch undergoes plating thickness, adhesion and salt spray tests as well as RoHS compliance testing to meet regulatory requirements.

Dielectric withstanding voltage and insulation resistance receive 100% inspection. You receive components with verified electrical safety margins.

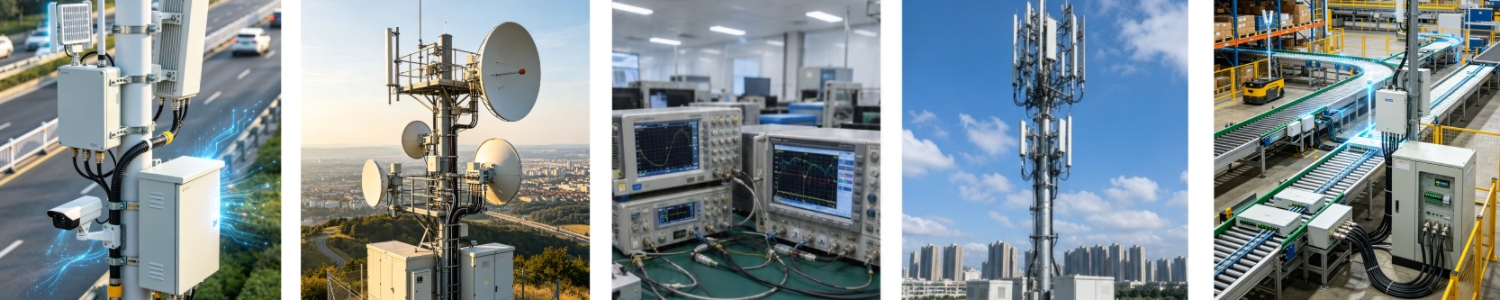

Primary Applications

Aerospace and Defense Systems

Satellite communication payloads utilize this adapter to connect miniaturized SSMA-equipped modules with standard SMA ground support equipment. The wide temperature rating supports thermal vacuum testing requirements.

Electronic warfare systems benefit from the compact design in high-density signal processing arrays. Vibration resistance ensures operational reliability in demanding tactical environments.

Laboratory Testing and Measurement

Vector network analyzer setups employ this SMA Female to SSMA Female Adapter to interface with miniaturized devices under test. The low insertion loss preserves measurement accuracy across the full frequency spectrum.

Research facilities use these adapters for prototype evaluation and qualification testing. The stable electrical characteristics support repeatable calibration procedures.

Telecommunications Infrastructure

5G testing environments require flexible interconnect solutions between various RF module generations. This adapter enables equipment compatibility without extensive cable assembly modifications.

High-frequency signal routing in base stations benefits from the adapter's low VSWR characteristics. You maintain signal quality in complex multi-stage distribution networks.

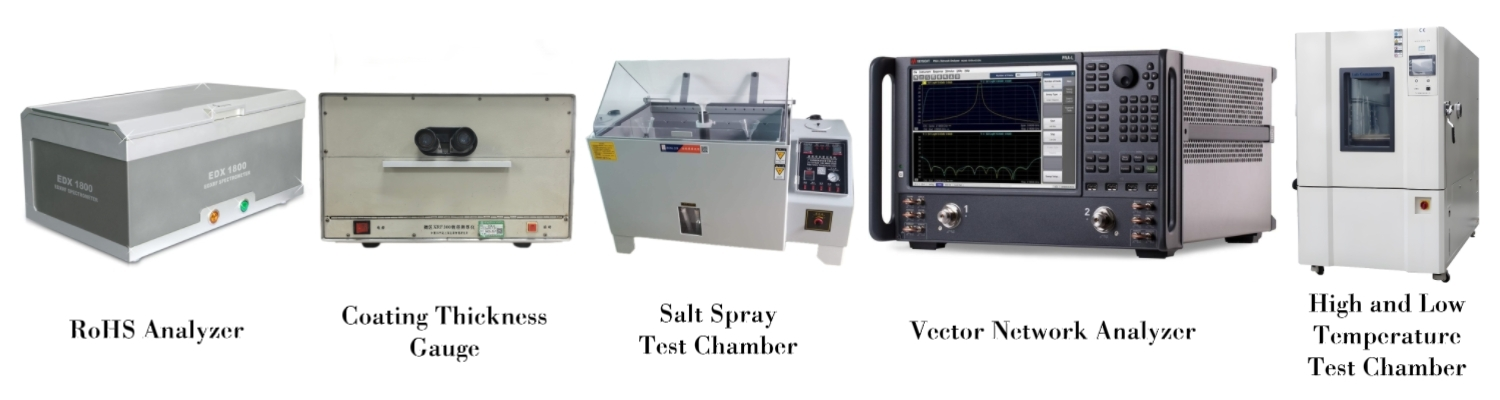

Quality Assurance

SIPU RF Technology implements comprehensive batch-level quality verification. Plating thickness measurements confirm gold layer adequacy for corrosion protection and conductivity.

Plating adhesion testing validates the mechanical bond strength between substrate and plating layers. This prevents delamination during thermal cycling and mechanical stress.

Environmental compliance receives verification through RoHS testing for each production batch. You can confidently specify these adapters for international projects with varying regulatory requirements.

The manufacturing process follows ISO 9001 certified quality management protocols. Consistent production controls deliver reliable performance across all units.

Packaging and Delivery

Each SMA Female to SSMA Female Adapter receives protective packaging to prevent damage during shipping. Standard products ship within 72 hours from stock availability.

Custom configurations and volume orders receive priority processing. Your order ships via reliable logistics partners with tracking information provided.

Frequently Asked Questions

Q:What frequency performance can I expect from this adapter?

A:The standard version supports DC to 18GHz with specified electrical performance. The VSWR formula ≤1.05+0.012F(GHz) provides predictable performance scaling across the operating range.

Q:Are the SMA and SSMA thread patterns compatible?

A:No, these interfaces feature different thread specifications (SMA uses 1/4-36 UNS while SSMA uses 10-36 UNS). Direct mating will damage the threads, making this dedicated adapter necessary for proper interconnection.

Q:What is the recommended installation torque?

A:While standard SMA connections typically require 7-10 in-lbs, the smaller SSMA interface demands reduced torque of approximately 4-5 in-lbs. This prevents mechanical over-stress of the coupling mechanism.

Q:How does this adapter affect signal phase?

A:Like all RF interconnects, the adapter introduces a small phase delay based on its physical length. For phase-matched systems, use adapters from the same production lot and verify performance with network analyzer measurements.

Q:Can this adapter withstand extreme temperatures?

A:Yes, the -65℃ to +125℃ operating range covers most aerospace and industrial applications. The PTFE dielectric and gold-plated contacts maintain stable electrical properties across this temperature span.

Q:What testing does each adapter receive?

A:Production units undergo dielectric withstanding voltage testing at 750V and insulation resistance verification exceeding 5,000MΩ. Batch-level testing includes plating quality assessment and RoHS compliance verification.

Contact Us

Contact SMA Female to SSMA Female Adapter Technology at info@sipuconn.com for product inquiries, technical specifications, or custom adapter development.
