SMA Female to BMA Female Adapter

SMA Female to BMA Female Adapter | High-Performance RF Interconnect Solution

SIPU RF Technology delivers precision-engineered SMA Female to BMA Female Adapter solutions designed for demanding RF applications. With over 25 years of manufacturing expertise, our model SIPU-SMA/BMA-KK operates seamlessly from DC to 18 GHz, maintaining exceptional VSWR performance of ≤1.05 + 0.02F(GHz). The adapter features gold-plated brass outer conductor and beryllium bronze center contact, ensuring superior conductivity with center contact resistance ≤3.0mΩ and outer contact resistance ≤2.0mΩ. Built to withstand 500 mating cycles and operating temperatures from -65℃ to +125℃, this adapter provides reliable interconnection between BMA blind-mate systems and standard SMA threaded interfaces for telecommunications, aerospace testing, and high-density RF installations.

SMA Female to BMA Female Adapter Specifications

Why Choose This Adapter

The SMA Female to BMA Female Adapter variable arrangement between SMA and BMA interfaces overcomes important connectivity difficulties in current RF systems.  You get a reliable connection architecture that preserves the signal integrity over your equipment’s full frequency range.

The small shape fits flawlessly into high-density rack and panel setups where space is at a premium. The added benefit is you have blind mate capabilities on the BMA side so you can change modules quickly without visual access.

Gold plated connections for long term dependability and steady electrical performance. The PTFE dielectric keeps impedance characteristics consistent throughout temperature extremes, providing you confidence in mission critical applications.

Key Performance Advantages

Superior Electrical Stability

Low insertion loss features maintain your signal strength at the frequency range. This tight control of VSWR minimises reflections that might impair measurement accuracy or communications quality.

You get uniform 50 Ohm impedance matching that fits right into your current RF network. High insulation resistance (> 5000MΩ) to avoid inter-channel signal leakage and cross-talk for multi-channel systems.

Robust Mechanical Design

The straight orientation layout facilitates installation in tight places. Rated for 500 mating cycles, you can confidently perform routine maintenance and system reconfigurations.

Precision machined brass construction with gold plating. Corrosion resistant in harsh environments. The central contact is beryllium bronze to maintain the spring tension during the product life for reliability in connection.

Wide Temperature Range

-65℃ to +125℃ operating capabilities makes this adapter suited for harsh climatic situations. Stable performance for arctic communications infrastructure and high temperature industrial environments.

PTFE dielectric material can survive temperature cycling without damage. Even if ambient temperature changes, you are electrically stable.

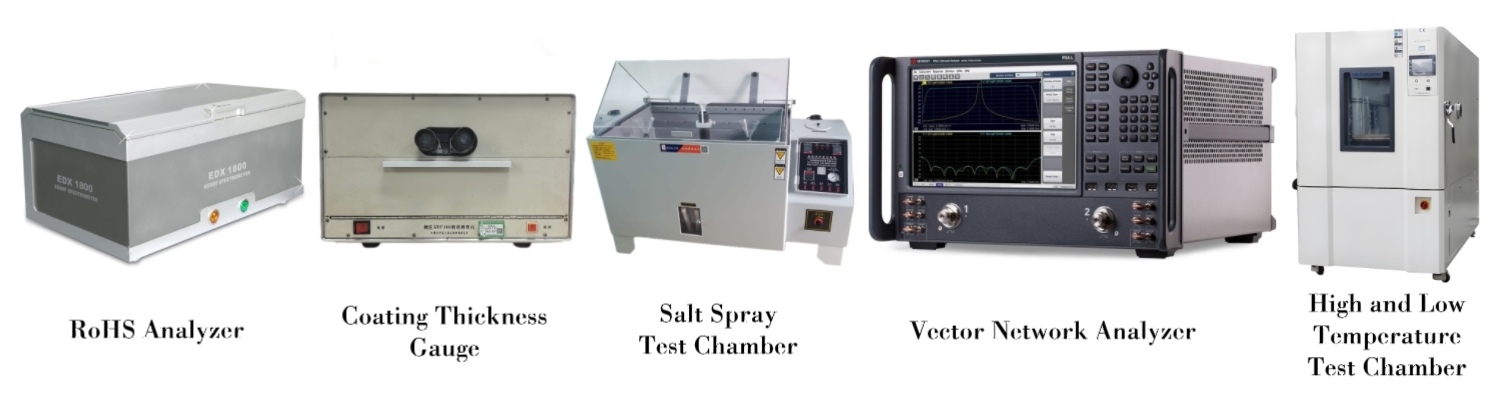

Quality Assurance Process

SIPU RF Technology implements comprehensive quality control measures for every production batch. Each adapter undergoes dielectric withstanding voltage testing using specialized insulation resistance testers to verify 1,000V capability and insulation integrity exceeding 5,000MΩ.

The manufacturing process includes batch-level plating thickness verification and plating adhesion testing. You receive products with verified gold plating quality that meets durability requirements for your application.

Every batch completes RoHS environmental compliance testing, ensuring your supply chain meets global regulatory standards. This commitment to quality control delivers consistent performance across production runs.

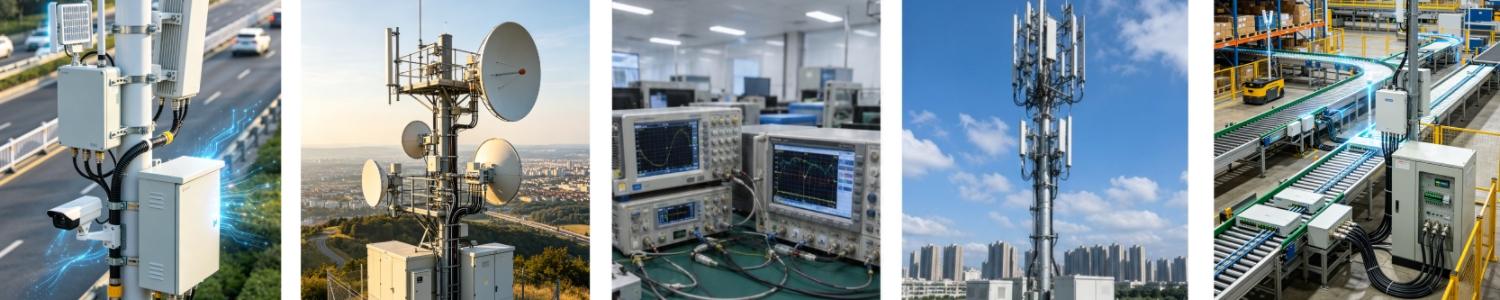

Ideal Applications

RF Test and Measurement

Laboratory environments benefit from the quick-connect convenience of BMA interfaces combined with standard SMA compatibility. You can rapidly reconfigure test setups while maintaining measurement accuracy across the DC-18GHz spectrum.

The low insertion loss preserves signal fidelity during critical measurements. High return loss performance ensures your vector network analyzer readings remain accurate.

Telecommunications Infrastructure

In outdoor conditions, base station equipment and dispersed antenna systems need dependable linkages. Wide temperature range and corrosion resistant design provide consistent performance in field installations.

High mating cycle durability supports maintenance schedules in cellular networks. You reduce downtime with adapters that withstand repeated connections during equipment upgrades.

Microwave Module Integration

High-density microwave assemblies demand space-efficient interconnect solutions. The compact straight configuration fits into tight module spacing while the blind-mate BMA interface enables rack-and-panel installations.

Consistent impedance characteristics prevent signal reflections in complex RF signal chains. Your system maintains performance integrity from input to output stages.

Frequently Asked Questions

Q1: What frequency performance can I expect from this adapter?

A1: The product operates from DC to 18 GHz with VSWR ≤1.05 + 0.02F(GHz). This specification ensures minimal signal reflection across the entire frequency range, making it suitable for broadband applications and precision measurements.

Q2: How does the BMA interface accommodate misalignment?

A2: The BMA female interface incorporates a floating contact mechanism that compensates for minor axial and radial misalignment during blind-mate connections. This feature proves essential in rack-and-panel installations where perfect mechanical alignment cannot be guaranteed.

Q3: What is the expected service life?

A3: With a rated 500 mating cycles and robust gold-plated contacts, you can expect extended service life under normal operating conditions. Proper handling and adherence to torque specifications maximize durability.

Q4: Is this adapter suitable for outdoor telecommunications use?

A4: Yes, the operating temperature range of -65℃ to +125℃ combined with gold-plated corrosion-resistant construction makes it appropriate for outdoor installations. However, proper environmental sealing at the connection points is recommended for long-term reliability.

Q5: Does the adapter meet environmental compliance standards?

A5: Every production batch undergoes RoHS environmental compliance testing. You receive documentation confirming compliance with global environmental regulations for restricted substances.

Q6: Can I use this adapter with standard SMA cables?

A6: Absolutely. The SMA female interface fully complies with industry standards, ensuring compatibility with any standard SMA male connector from reputable manufacturers.

Contact Us for Custom Solutions

Reach our SMA Female to BMA Female Adapter's at info@sipuconn.com for inquiries, technical consultation, or ordering information. We deliver fast response times and reliable product availability to keep your projects on schedule.
